DESIGNBOARD 230 LAMINATE

Designboard 230 Laminate
  • A2 incombustible

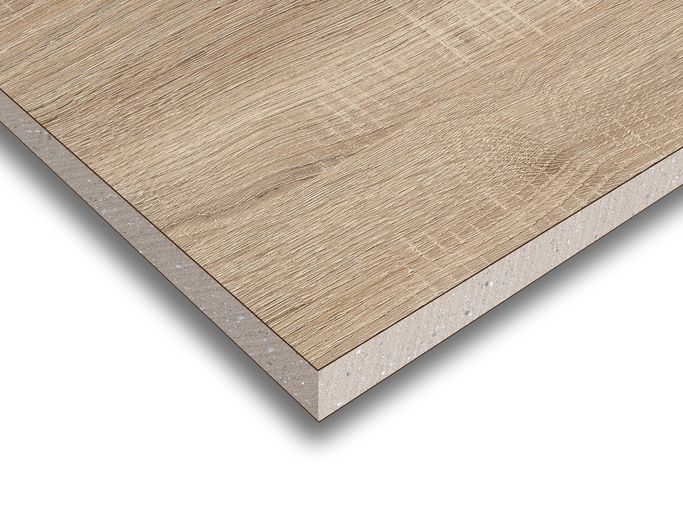

The laminated gypsum fibre board

DESIGNBOARD 230 LAMINATE is used in all areas of high-quality interior design with very high creative design requirements. DESIGNBOARD 230 LAMINATE consists of a non-combustible carrier board made of gypsum fibre and is laminated in the works. Thanks to the refined surfaces of DESIGNBOARD 230 LAMINATE individual designs can be realized, so that the demands of tomorrow can already be fulfilled today. Sound insulation, acoustics, fire protection as well as robustness are, in addition to the highly flexible design options, requirements that the DESIGNBOARD 230 LAMINATE fulfils in correspondingly tested systems.

DESIGNBOARD 230 LAMINATE is excellently suitable for use in areas regulated by building authority requirements in which non-combustible composite materials are required.

Scope of classification

Details

Characteristics

  • Laminated in the works
  • Non-combustible A2-s1, d0
  • Universally usable
  • Robust surface
  • Good structural cohesion also under exposure to fire
  • Simple working
  • Low swelling and shrinking under changes in the climatic conditions
  • Ecologically tested carrier board material

Application areas

The processing is carried out according to relevant standards and to detailed documentation of Knauf Design.

Usability

  • Ceiling cladding and suspended ceilings
  • Wall systems
  • Acoustic systems

Implementation

DESIGNBOARD 230 LAMINATE can be mounted with the Knauf Design sub-constructions split battens or DESIGNBOARD FIX.

DESIGNBOARD 230 LAMINATE can be sawn, milled, drilled, cut and milled and drilled with standard wood processing machines and carbide-tipped tools. Diamond-tipped tools furthermore extend the service life and are recommendable for high-speed machines. In order to prevent scratches, precautionary measures are required such as maintaining a clean workplace and working on the back of the board material. Suction units are recommended to reduce the dust development.

Product variants
DESIGNBOARD 230 LAMINATE Unit Bulk density in kg/m³ ≥1100 Bulk density in kg/m³ ≥1500
Realization Laminate HPL
Standard formats mm 3030 x 1200 2560 x 1200
Thicknesses mm 13.2 / 17.2 / 19.2 / 22.2 / 24.2 / 26.2 13.2 / 19.2
Surface Laminated with HPL (High Pressure Laminate)
Building material classification A2-s 1, d0 to DIN EN 13501-1

Laminate - wood

Laminate - plain colours

Laminate - metal

  • KD-0116-BF-L

    Stainless Steel

  • KD-0117-BF-L

    Aluminium Matte

  • KD-0118-BF-L

    Aluminium Silver

Laminate - Stone

  • KD-0128-ST-L

    Sandstone

  • KD-0129-ST-L

    Rust

  • KD-0148-ST-L

    Sandstone Dark
